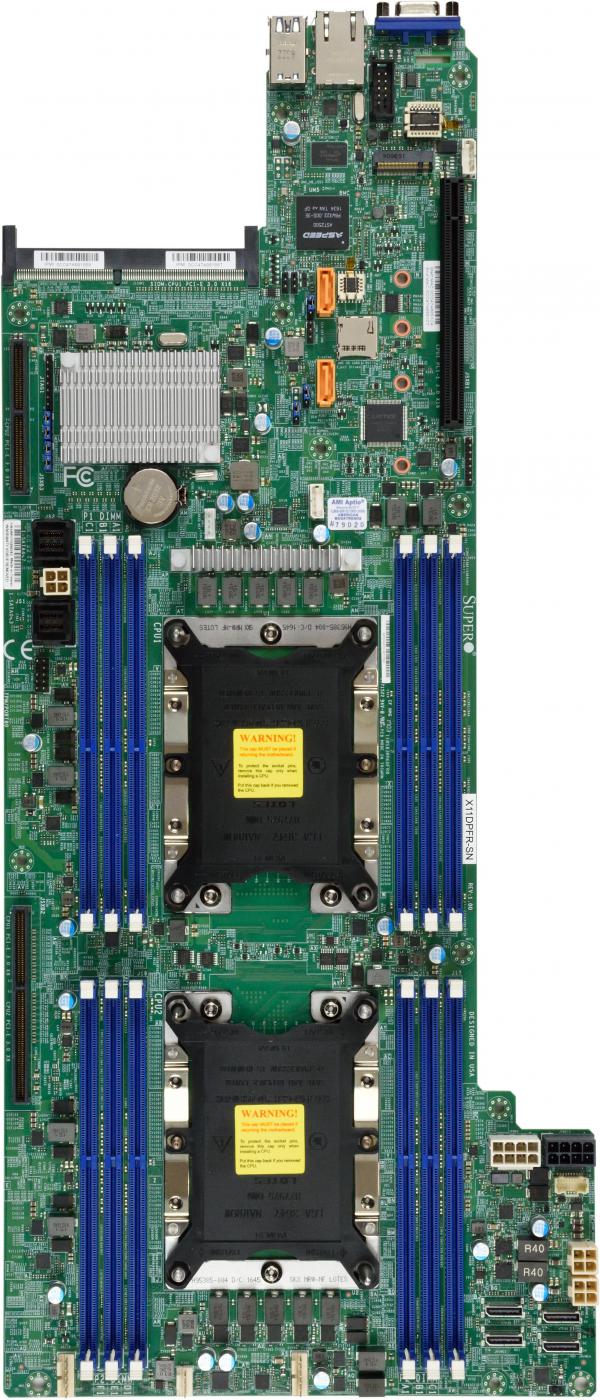

X11DPFR-SN
X11DPFR-SN
  • Description
    • Product SKUs
    MBD-X11DPFR-SN
    • X11DPFR-SN

    Physical Stats
    Form Factor
    • Proprietary FatTwin
    Dimensions
    • 8.53" x 19.66" (21.67cm x 49.94cm)

    Processor/Cache
    CPU
    • Intel® Xeon® Scalable Processors.
    • Dual Socket P (LGA 3647) supported, CPU TDP support 165W, 2 UPI up to 10.4 GT/s
    Cores / Cache
    • Up to 28 cores

    System Memory
    Memory Capacity
    • Up to 768GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1.5TB Registered ECC LRDIMM, in 12 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
    DIMM Sizes
    • RDIMM: 64GB
    • LRDIMM: 64GB
    • 3DS LRDIMM: 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Single LAN with
      Networking options provided via SIOM module
    Graphics
    • Aspeed AST2500 BMC

    Input / Output
    SATA
    • 8 SATA3 (6Gbps) port
    LAN
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (2 rear)
    Video Output
    • 1 VGA port
    TPM
    • 1 TPM Header
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 Left Riser Slot,
    • 1 PCI-E 3.0 x16 Right Riser Slot,
    • 1 PCI-E 3.0 x16 connector for SMC add-on cards
    • 1 PCI-E 3.0 x16 SIOM LAN Networking Slot
    M.2
    • M.2 Interface: PCI-E 3.0 x4
    • Form Factor: 2260, 2280, 22110

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    • Intel® Node Manager, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
    Power Configurations
    • ACPI Power Management

    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT
    FAN
    • 3x 4-pin fan headers (up to 3 fans), Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
    Temperature
    • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
    LED
    • CPU / System Overheat LED, Suspend static indicator LED, UID/Remote UID
    Other Features
    • Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS

    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
