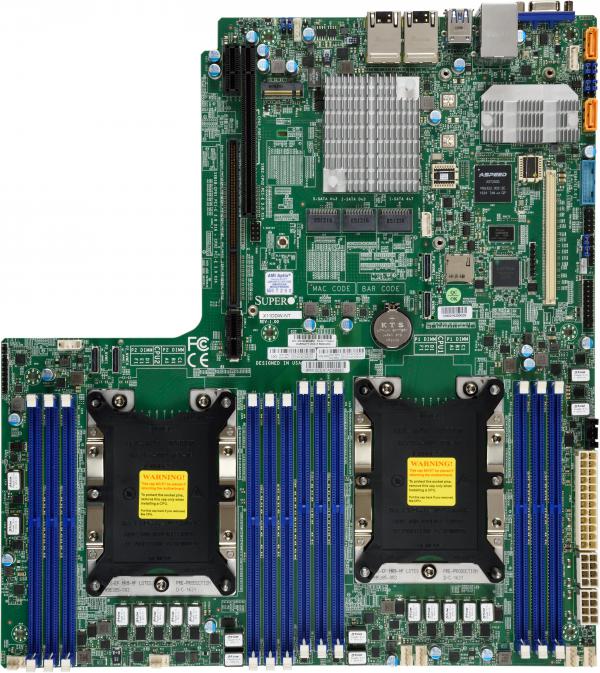

MBD-X11DDW-L
|
|
|
|
|
|
|
Form Factor
|
|
|
Dimensions
|
-
12.3" x 13.4" (31.24cm x 34.04cm)
|
|
|
|
|
|
CPU
|
-
Intel® Xeon® Scalable Processors.
-
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
|
|
|
|
|
|
Memory Capacity
|
-
Up to 1.5TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 1.5TB 3DS ECC LRDIMM, in 12 DIMM slots
|
|
Memory Type
|
-
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
|
DIMM Sizes
|
-
RDIMM: 64GB
-
LRDIMM: 64GB
-
3DS LRDIMM: 128GB
|
|
Memory Voltage
|
|
|
Error Detection
|
-
Corrects single-bit errors
-
Detects double-bit errors (using ECC memory)
|
|
|
|
|
|
Chipset
|
|
|
SATA
|
-
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
|
IPMI
|
|
|
Network Controllers
|
-
Dual LAN with GbE
from C621
|
|
Graphics
|
|
|
|
|
|
|
LAN
|
-
2 RJ45 Gigabit Ethernet LAN ports
|
|
USB
|
-
6 USB 3.0 ports (4 rear + 2 headers) Type A
|
|
Video Output
|
|
|
TPM
|
|
|
|
|
|
|
PCI-E
|
-
1 PCI-E 3.0 x32 Left Riser Slot,
-
1 PCI-E 3.0 x16 Right Riser Slot,
-
1 PCI-E 3.0 x16 for Add-On-Module (AOM)
|
|
M.2
|
-
M.2 Interface: PCI-E 3.0 x4
-
Form Factor: 2242, 2260, 2280, 22110
-
Key: M-Key
|
|
|
|
|
|
BIOS Type
|
|
|
|
|
|
|
Software
|
-
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
|
|
|
|
|
Voltage
|
-
+1.8V, +12V, +3.3V, +5V, +5V standby, 5 (4-pin), 5+1 Phase-switching voltage regulator, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, VBAT
|
|
FAN
|
-
6x 4-pin fan headers (up to 6 fans), 6 fans with tachometer status monitoring, Dual Cooling Zone, PWM fan speed control, Thermal control tachometer fan connectors
|
|
Temperature
|
|
|
LED
|
-
CPU / System Overheat LED, UID/Remote UID
|
|
Other Features
|
-
Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID
|
|
