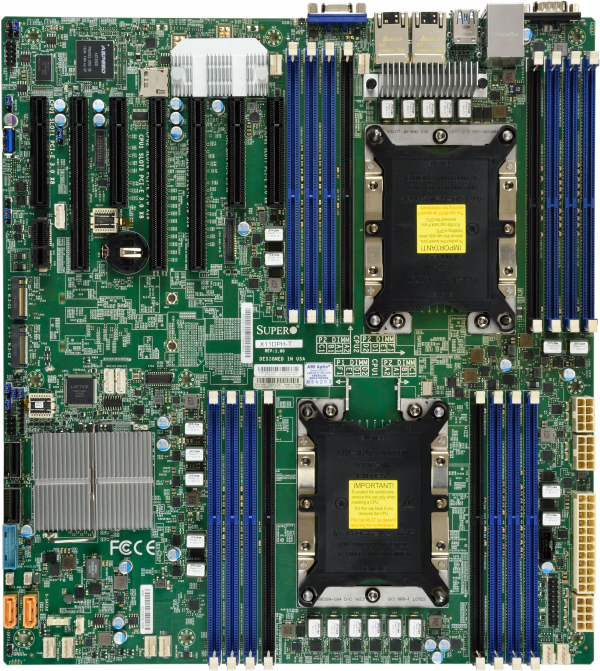

X11DPH-I
X11DPH-I
  • Description
    • Product SKUs
    MBD-X11DPH-I
    • X11DPH-I

    Physical Stats
    Form Factor
    • E-ATX
    Dimensions
    • 12" x 13" (30.48cm x 33.02cm)

    Processor/Cache
    CPU
    • Intel® Xeon® Scalable Processors.
    • Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s

    System Memory
    Memory Capacity
    • Up to 1TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
    DIMM Sizes
    • RDIMM: 64GB
    • LRDIMM: 64GB
    • 3DS LRDIMM: 128GB
    Memory Voltage
    • 1.2V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors (using ECC memory)

    On-Board Devices
    Chipset
    • Intel® C621
    SATA
    • Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with 1GbE with Marvell® 88E1512

    Input / Output
    SATA
    • 10 SATA3 (6Gbps) ports
    LAN
    • 2 1GbE LAN ports
    USB
    • 7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
    Video Output
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 rear)
    TPM
    • 1 TPM Header
    Expansion Slots
    PCI-E
    • 3 PCI-E 3.0 x16,
    • 4 PCI-E 3.0 x8
    M.2
    • M.2 Interface: 2 PCI-E 3.0 x4
    • Form Factor: 22110
    • Key: M-Key (RAID 0,1 support)

    System BIOS
    BIOS Type
    • AMI UEFI

    Management
    Software
    • Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog

    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
    FAN
    • 7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
    Temperature
    • CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
    LED
    • CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
    Other Features
    • ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID

    Operating Environment
    Operating Temperature Range
    • 10°C - 35°C (50°F - 95°F)
    Non-Operating Temperature Range
    • -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range
    • 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range
    • 5% - 95% (non-condensing)
