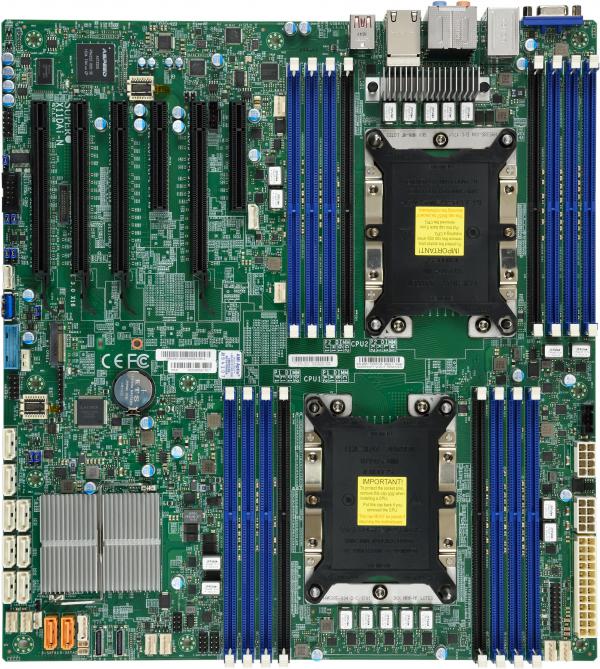

| MBD-X11DAi-N
|
|
|
|
|
|
| Form Factor
|
|
| Dimensions
|
-
12" x 13" (30.48cm x 33.02cm)
|
|
|
|
|
| CPU
|
-
Intel® Xeon® Scalable Processors.
-
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 2 UPI up to 10.4 GT/s
|
|
|
|
|
| Memory Capacity
|
-
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
|
| Memory Type
|
-
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
| DIMM Sizes
|
-
RDIMM: 64GB
-
LRDIMM: 64GB
-
3DS LRDIMM: 128GB
|
| Memory Voltage
|
|
| Error Detection
|
-
Corrects single-bit errors
-
Detects double-bit errors (using ECC memory)
|
|
|
|
|
| Chipset
|
|
| SATA
|
-
Intel® C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
| IPMI
|
|
| Network Controllers
|
-
Dual LAN with GbE from C621
Support 1000BASE-T
|
| Audio
|
|
| Graphics
|
|
|
|
|
|
| USB
|
-
4 USB 3.0 ports (4 rear),
-
2 USB 3.1 ports (2 rear)
|
| Video Output
|
|
| Serial Port / Header
|
|
| TPM
|
|
| Others
|
-
Thunderbolt header for Thunderbolt AOC support
|
|
|
|
|
| PCI-E
|
-
4 PCI-E 3.0 x16,
-
2 PCI-E 3.0 x8
|
| M.2
|
-
M.2 Interface: PCI-E 3.0 x4
-
Form Factor: 2260, 2280, 22110
-
Key: M-Key
|
|
|
|
|
| BIOS Type
|
|
|
|
|
|
| Software
|
-
Intel® Node Manager, IPMI2.0, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
|
|
|
|
| Voltage
|
-
+1.8V, +12V, +3.3V, +5V, +5V standby
|
| FAN
|
-
7x 4-pin fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Fan speed control, Overheat LED indication, Pulse Width Modulated (PWM) fan connectors
|
| Temperature
|
|
| LED
|
|
| Other Features
|
-
Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS
|
|
