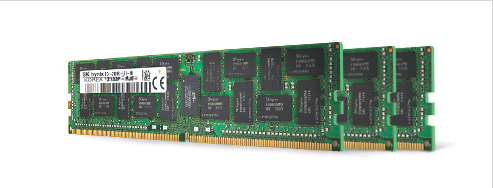

240 pin Load Reduced DDR3(L) DRAM Dual In-Line Memory Module
Buffer performance by LRDIMM presenting less load to system
Compatible with RDIMM systems with appropriate BIOS changes
Backward Compatible with 1.5V DDR3 Memory Module
(1.35V could not support the upper 1.5V speed)
Built with 4Gb DDR3 SDRAM 78ball
Data transfer rates: Up to PC3L-10600 / PC3-12800
JEDEC standard Double Data Rate3 Synchronous DRAMs(DDR3 SDRAMs) with 1.5V nominal
JEDEC standard Double Data Rate3L Synchronous DRAMs(DDR3L SDRAMs) with 1.35V nominal
Functionality and operations are same with DDR3 & DDR3L about same speed bin
Host interface and MB(Memory Buffer) component industry standard compliant
MB provides “address multiplication” to generate additional chips selects
Address mirroring
ODT (On-Die Termination)
133.35 x 30.35 mm form factor
Full DIMM Heat Spreader
This product is in compliance with the RoHS directive.
