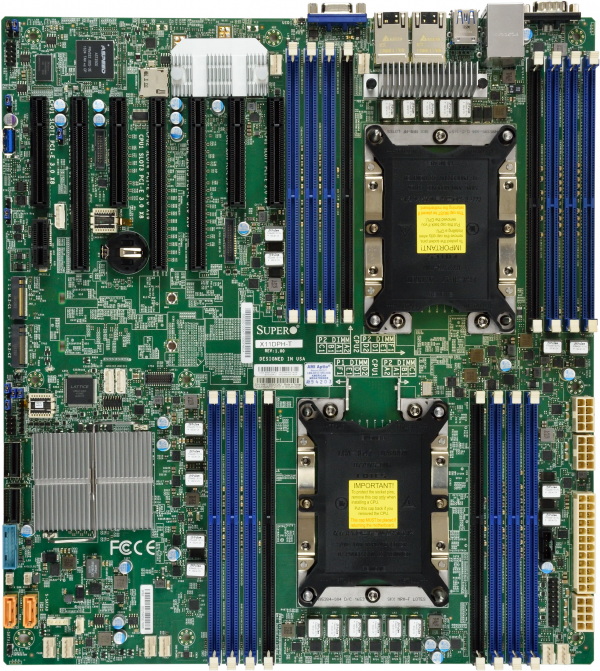

MBD-X11DPH-T
|
|
|
|
|
|
|
Form Factor
|
|
|
Dimensions
|
-
12" x 13" (30.48cm x 33.02cm)
|
|
|
|
|
|
CPU
|
-
Intel® Xeon® Scalable Processors.
-
Dual Socket P (LGA 3647) supported, CPU TDP support 205W, 3 UPI up to 10.4 GT/s
|
|
|
|
|
|
Memory Capacity
|
-
Up to 2TB 3DS ECC RDIMM, DDR4-2666MHz; Up to 2TB 3DS ECC LRDIMM, in 16 DIMM slots
|
|
Memory Type
|
-
2666/2400/2133MHz ECC DDR4 RDIMM, LRDIMM
|
|
DIMM Sizes
|
-
RDIMM: 64GB
-
LRDIMM: 64GB
-
3DS LRDIMM: 128GB
|
|
Memory Voltage
|
|
|
Error Detection
|
-
Corrects single-bit errors
-
Detects double-bit errors (using ECC memory)
|
|
|
|
|
|
Chipset
|
|
|
SATA
|
-
Intel® C622 controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10
|
|
IPMI
|
|
|
Network Controllers
|
-
Dual LAN with 10GBase-T with Intel® X557
|
|
|
|
|
|
SATA
|
|
|
LAN
|
|
|
USB
|
-
7 USB 3.0 ports (4 rear + 2 headers + 1 Type A)
|
|
Video Output
|
|
|
Serial Port / Header
|
|
|
TPM
|
|
|
|
|
|
|
PCI-E
|
-
3 PCI-E 3.0 x16,
-
4 PCI-E 3.0 x8
|
|
M.2
|
-
M.2 Interface: 2 PCI-E 3.0 x4
-
Form Factor: 22110
-
Key: M-Key (RAID 0,1 support)
|
|
|
|
|
|
BIOS Type
|
|
|
|
|
|
|
Software
|
-
Intel® Node Manager, IPMI2.0, KVM with dedicated LAN, SPM, SSM, SUM, SuperDoctor® 5, Watchdog
|
|
|
|
|
|
Voltage
|
-
+1.8V, +12V, +3.3V, +5V, +5V standby, 7-fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System temperature, VBAT
|
|
FAN
|
-
7fan headers (up to 7 fans), 7 fans with tachometer status monitoring, Dual Cooling Zone, Fan speed control, Overheat LED indication, PWM fan speed control
|
|
Temperature
|
-
CPU thermal trip support, Monitoring for CPU and chassis environment, PECI
|
|
LED
|
-
CPU / System Overheat LED, UID/Remote UID, Suspend static indicator LED
|
|
Other Features
|
-
ACPI power management, Chassis intrusion detection, CPU thermal trip support for processor protection, Node Manager Support, RoHS, UID
|
|
|
|
|
|
Operating Temperature Range
|
-
10°C - 35°C (50°F - 95°F)
|
|
Non-Operating Temperature Range
|
-
-40°C - 70°C (-40°F - 158°F)
|
|
Operating Relative Humidity Range
|
-
8% - 90% (non-condensing)
|
|
Non-Operating Relative Humidity Range
|
-
5% - 95% (non-condensing)
|
|
