产品介绍

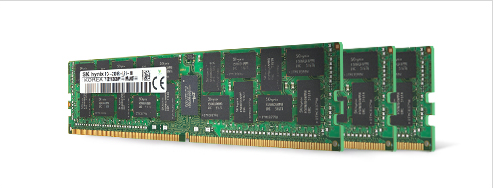

288 pin Load Reduced DDR4 DRAM Dual In-LIne Memory Modules
Buffer performance by LRDIMM presenting less load to system
Compatible with RDIMM systems with appropriate BIOS change
Power Supply: VDD=1.2V (1.14V to 1.26V)
VDDQ = 1.2V (1.14V to 1.26V)
VPP - 2.5V (2.375V to 2.75V)
VDDSPD=2.25V to 2.75V
Functionality and operations comply with the DDR4 SDRAM datasheet
16 internal banks
Bank Grouping is applied, and CAS to CAS latency (tCCD_L, tCCD_S) for the banks in the same or different bank group accesses are available
Data transfer rates: PC4-2666, PC4-2400, PC4-2133, PC4-1866, PC4-1600
Bi-Directional Differential Data Strobe
8 bit pre-fetch
Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
Supports ECC error correction and detection
On-Die Termination (ODT)
Temperature sensor with integrated SPD
This product is in compliance with the RoHS directive.VDDQ = 1.2V (1.14V to 1.26V)
